Type:

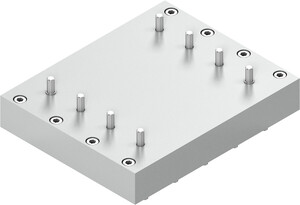

Adapter set CCN HT150 – HT100
Artikelnummer:
25-001589
Dimensions
| Dimensions | |||
|---|---|---|---|
| axis 1 | HT150 | ||
| axis 2 | HT100 | ||
| LA | 149 | mm | |
| BA | 142 | mm | |
| HA | 15 | mm | |
| Mass | 1,758 | kg | |
| Aanduiding | Categorie | Product | Grootte | Taal |
|---|---|---|---|---|
| Adapter for linear axis systems HX | Assembly Instructions | Linear axes & linear axis systems | 1 MB | |
| Linear axes and axis systems HX | Catalogue | Linear axes & linear axis systems | 13 MB |
HIWIN HX: One axis family – countless possibilities
An innovative design, two designs, three drive types and countless possibilities. The bendable HIWIN HX axis system offers the right solution for your ideas.
